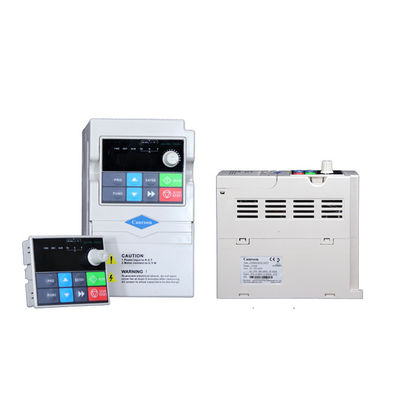

Off-Grid Solar Water Pumping Drive System - Single Phase AC Power Output for Submersible Pumps
제품 상세 정보
| 모델 번호 | CV900S-007G-14TF | 출력 전류 | 2.5A-380A |
|---|---|---|---|
| 출력 주파수 | 50Hz/60Hz | 자격증 | CE |
| 유형 | DC/AC 인버터 | 로우 주파수 모드 | 0-300HZ |
| 출력 전원 | 0.75-200KW | 출력 전압 | 380-415V |
| 강조하다 | solar pump inverter for submersible pumps,off-grid solar water pumping system,single phase AC solar inverter |
||
제품 설명
Solar water pump inverter PV support dc to ac solar power irrigation mppt
Canroon CV900S Solar Water Pump Inverter | For Off-Grid Pumping Systems
The CV900S solar pump inverter is a dedicated controller designed to interface between a solar panel array and an AC water pump. It converts variable DC solar power into stable AC power to drive the pump, creating a seamless and efficient autonomous water pumping system.
Core Function: Utilizes solar-generated electricity to power water pumps for extraction from wells, rivers, and lakes.
Key Technology: Features built-in MPPT for maximum energy harvest from the solar array.
MPPT
Bulid-in MPPT function
High effciency
Optimized frequency output
Flexible system design
Minimized solar panels solution
Off-grid power storage
GPRS based wireless monitoring &controlling
Automatic control
Start in the morning automatically
Stop in the afternoon automatically
Dormancy and wake up automatically
Output speed change automatically
Primary Applications: Ideal for farm irrigation, desert greening, garden fountains, remote water supply, and other applications requiring reliable, solar-powered water delivery.
| Model | -12SF | -14TF |
| AC input voltage(V) | 220~260(1PH) | 380~480(3PH) |
| Max.DC voltage(V) | 440 | 800 |
| Start-up voltage(V) | 180 | 280 |
| Lowest working voltage(V) | 150 | 250 |
| Recommended DC | 200~400 | 300~750 |
| input voltage range(V) | ||
| Recommended MPP voltage(V) | 330 | 550 |
| Three-Phase 220-260V output | |||
| Model No. | Rated output power(KW) | Max. DC input current(A) | Rated output current(A) |
| CV900S-00BG-12SF2 | 0.75 | 7.5 | 4.5 |
| CV900S-001G-12SF2 | 1.5 | 10 | 7 |
| CV900S-002G-12SF2 | 2.2 | 18 | 10 |
| Three-Phase 380-480V output | |||
| Model No. | Rated output power(KW) | Rated input current(A) | Rated output current(A) |
| CV900S-00BG-14TF1 | 0.75 | 4.5 | 2.5 |
| CV900S-001G-14TF1 | 1.5 | 7.5 | 3.7 |
| CV900S-002G-14TF1 | 2.2 | 10 | 5 |
| CV900S-004G-14TF1 | 4 | 18 | 9 |
| CV900S-005G-14TF1 | 5.5 | 20 | 13 |
| CV900S-007G-14TF1 | 7.5 | 30 | 17 |
| CV900S-011G-14TF1 | 11 | 40 | 25 |
| CV900S-015G-14TF1 | 15 | 50 | 32 |
| CV900S-018G-14TF1 | 18.5 | 60 | 37 |
| CV900S-022G-14TF1 | 22 | 80 | 45 |
| CV900S-030G-14TF1 | 30 | 100 | 60 |
| CV900S-037G-14TF1 | 37 | 119 | 75 |
About Canroon
Canroon is a remarkable energy saving solutions provider, specialized in frequecy inverter for more than 12 years, whose products and solutions are widely used in shipbuilding, aviation, automotive, metallurgy, chemical engineering, petroleum pipeline constrution, newmaterials, new energy and other fields.
Canroon has a professional R&D team, committed to convert its wisdom into leading products and services to meet the needs of different customers, continuing to create values for customers.
Basic Running Wiring
The wiring parts of inverter include major loop and control loop. Open the cover of /0 terminals, users can seethe major loop terminal and control loop terminal, and must conduct the wiring according to the followingdiagram.
